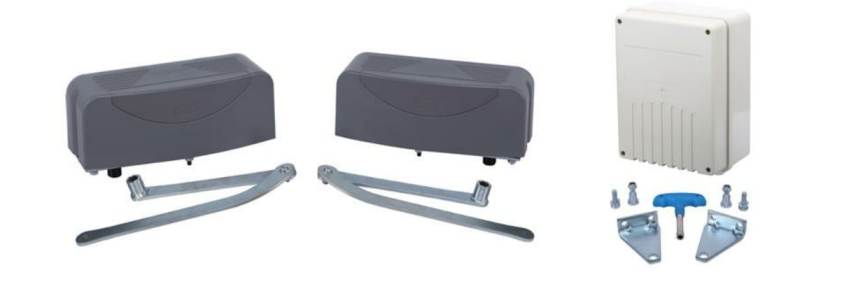

Swing Gate Motor 400 Kg.

S.No. Features
1 DC motor, compact structure, smooth operation and low noise.
2 Optional for stroke length 35 cm and 55 cm.
3 External Control Box
4 Keypad / single button interface.
5 Alarm lamp, Photo beam & safety beam interface.
6 User can select auto-close function.
7 Auto-reverse function when hitting obstacle during closing.
8 Manual key release design for emergency purposes.
Descriptions Specifications
400 AC 400 ACU
Power Supply AC220V/50Hz AC110V/60Hz
Maximum Gate Weight 400KG/leaf
Motor Power DC24V,200W
Driving Method Linkage
Limit Switch Mechanical limit switch
Max Speed 1.75 rpm
Max. Single-Leaf Length 3.0m
Operating Cycle 10 second per 90(approx.)
Remote Control Range ≥30 m
Recording of Up Remotes 25
Frequency 433.92MHz
Work Duty S2 15min
Working Temperature -20℃~50℃
Package Weight Motor 25.70 KG , Control unit 1.30 KG
