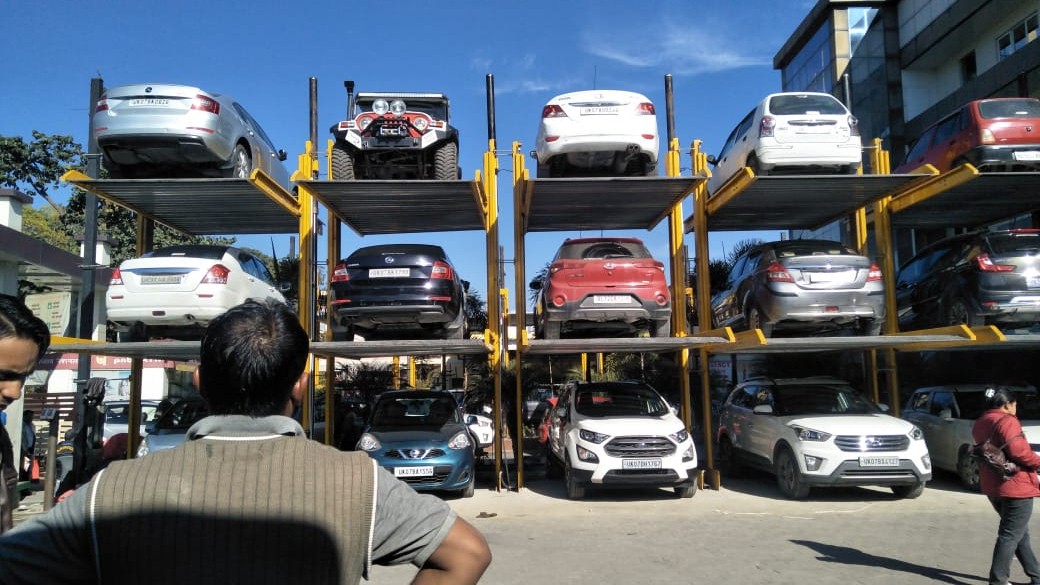

Ground +2 Stack Car Parking

S.No. Features
1 Galvanized Platforms - Long life, rust free, corrosion free & easy to clean. Minimum electric consumption -
2 Safety locks give an additional safety feature for avoiding fall of plat form is case of any hydraulic Failure.
3 Operational cost minimal as the downward movement require electrical power of 0.1Amp only.
Descriptions Stacker Parking Dependent Type
Small Size Car SUV's
Platform Length (mm) L2-3800 to 4300
L1-4000 to 4500
L2-4500
L1-4800
Platpform Width (mm) L2-1900 to 2000
L1-2000 to 2100
Gr.-2100 to 2200
L2-2200
L1-2300
Gr.-2400
Lifting Capacity per Platform (Kg) L2-1800
L1-1800
Gr.-1800
L2-1800
L1-1800
Gr.-1800
Lifting Clearance 1700 to 1800 1800 to 2000
Lifting Travel Time 18 to 20 Sec. 22 to 25 Sec.
Lifting Operation Hydraulically
Motor on Power Pack 2.2KW/3HP
Operating Panel Automatic and Manual
