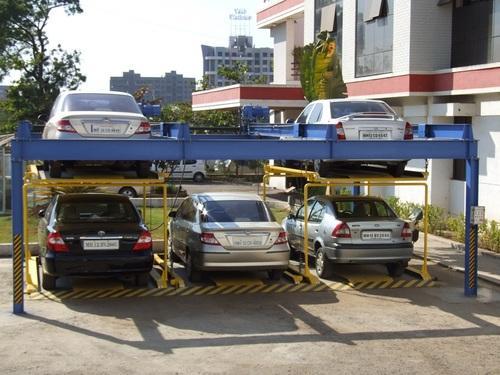

On Ground gPuzzle Car Parking System

S.No. Features
1 Galvanized Platforms - Long life, rust free, corrosion free & easy to clean. Minimum electric consumption -
2 Safety locks give an additional safety feature for avoiding fall of plat form is case of any hydraulic Failure.
3 Minimum Electric Consumption - Operational cost minimal as the downward movement does not required electrical power.
Descriptions Puzzle Parking Pit (Independent)
Small Size Car SUV's
Platform Length (mm) 4800 to 5000 5200 to 5500
Platform Width (mm) 2300 to 2500 2300 to 2550
Lifting Capacity per Platform (Kg) 2000Kg 2500-3000
Lifting Clearance 1700 to 1800 1800 to 2000
Lifting Travel Time 19 to 21 Sec. 22 to 25 Sec.
Lifting Operation Hydraulically
Sliding with G Motor Hydraulically & Electromechanical
Motor on Power Pack 2.2KW/3HP
Operating Panel Automatic with Manual Overide
Sliding G Motor 0.25HP/0.18KW
