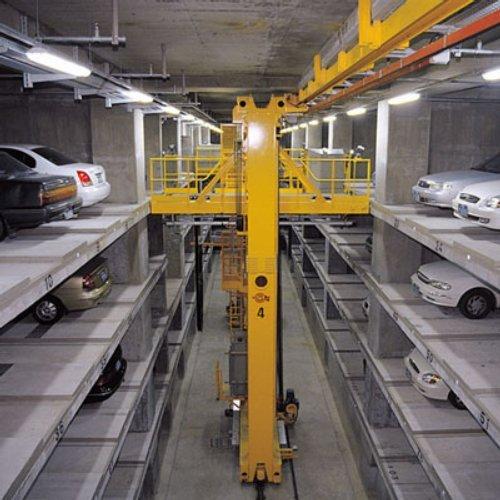

Multi Level/ Automatic Car Parking Systems

S.No. Features
1 Structural Steel
2 Galvanized Platforms
3 Minimum electric consumption
4 Safety locks
5 Proximity Sensors
6 Very Safe, Fast and Smart Parking
Type & Operation Method Car Parking Systems (Non Pelet Type)
Specification of Vehicles be Accommodated Outdoor Vertical Rotation Type
Winding Drive Part Specifications
Life Cage Arrangement Device
Winding Motor 22KW x 4P & DC Brake
Winding Decelerator HEICALI=1/33
Winding Speed 60-90M/Min
Winding Type Ending Rope (8), 21 Roping Type
Arrangment Type Lain & Sidebar Convertor
Front Stopper Hydraulic Type Stopper
Travelling Motor 1.5KW x 4P & DC, 2 Sets
Specifications of Cart
Life Cage Arrangement Device
Travelling Speed 60-120M/Min
Horizontal Moving Motor 46M/Min
Loading Motor 0.75 KW
Loading Type Grasping of the Front Heel of Vehicle by Jaw
Loading Time 6 Secendos
Specifications of Electric Control Part
Motor Control IGBT Interor
Operation Control Type PLC Type
Control Method Touch Screen
Power Power Source AC 415V, 50Hz TPN
