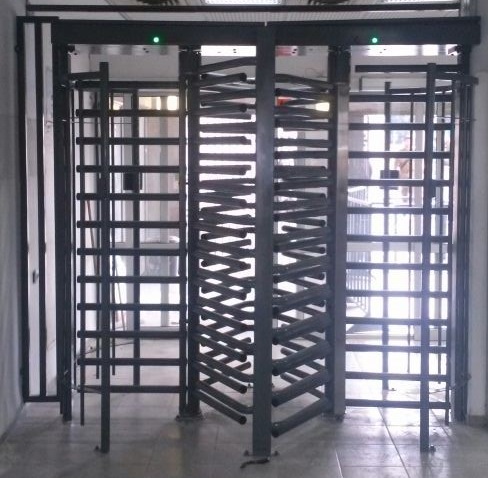

Full Height Dual Lane Turnstile

Features
Rotation Direction Bi-Directional
Unidirectional
Frame Stainless Steel
Descriptions Specifications
Passageway: 650 mm
Mechanism: Electro-mechanical
Dimension: 1630*1500*2310 mm
Power Supply 220~240 V(AC)
Control Circuit 24 V(DC)
Power Consumption 30 W
Frequency 50 or 60 Hz
Ingress Protection 66 IP
Protection level IP 65
Operating Temperature Range -25 to +70 oC
Electro-Magnetic Drive DC
Humidity 95%
Net Weight 400-450 KG
Frame Protection Waterproof
Hydraulic Damper Adjustable
Solenoid 24v DC 100%
Thought Person
Signal Output 12 v pulse
