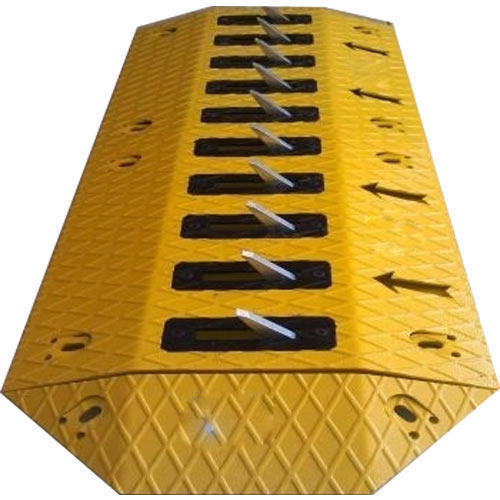

Electromechanical Tyre Killers

Features
Lane Width 3mtr, 4mtr, 5mtr & 6mtr.
Speed 1.5 Sec.
Mobile/Fixed Fixed
Descriptions Specifications
Foundation 700mm
Mechanism Electro-mechanical
Mobile/Fixed Fixed
Speed 1.5sec.
System Type Active2-way spikes,Hollow with provision of vent for punctured tyres Compressed Air
Dia of Spike 25mm
Height of Spike 162mm
Height of Spike above block 100mm
Max. thickness of the Strip 25mm
Height of the Block from Road 125mm
Width of the block 400mm
Max. Length of the block 3048mm
Spike to Spike Distance 85mm
Housing Galvanised Mild Steel Body
Installation depth 600mm
Vehicle Load 50 ton
Safety Devices Remote Control, Smart Card Reader, Optional Beam Sensor, Loop Detectors, Biometric Devices etc (Optional)
Spike of Steel Material
Underground Housing L-4600mm W-400mm H-950mm
Cycles per hour 250
Power Supply 110-240V AC
Operative Options Push button and Remote Control
In case of Power Failure Manual Operation available with hand pump
Control panel Adjustable according to the customer need
Shock Resistance High level and extremely sturdy
Finishing Treatment Zinc coating (inside out), stainless steel cover, anti-corrosion treatment
Operating Temperature -20 to 60 degree centigrade
