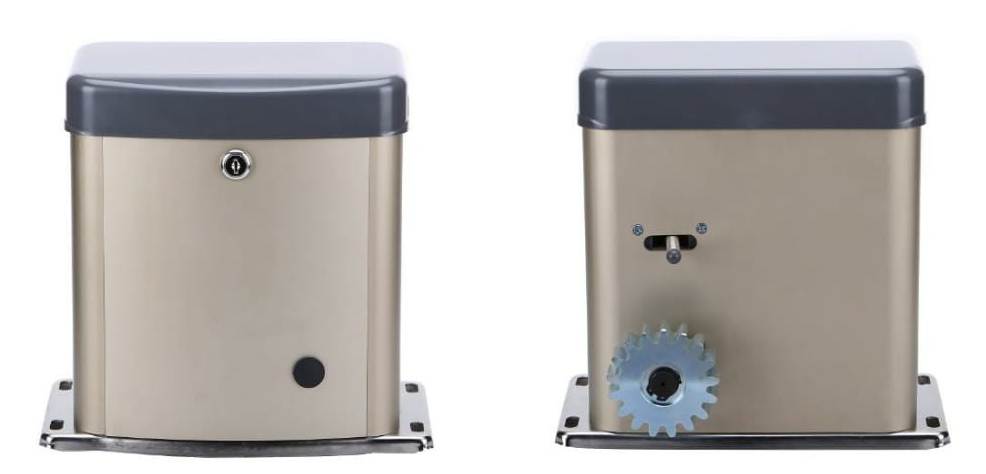

Sliding Gate Motor 300 Kg.

S.No. Features
1 Brushed aluminum shell, novel appearance.
2 Electromechanical DC24V motor with built-in control unit.
3 Optional connect backup battery.
4 Solar system compatible.
5 Keypad / single button interface.
6 Alarm lamp, photo beam & safety beam interface
7 User can select auto-close function.
8 Soft start and slow stop.
9 Auto-reverse function when hitting obstacle during closing.
10 Manual key release design for emergency purposes.
Descriptions Specifications
300 DC 300 DCL
Power Supply AC 220V/50Hz; AC 110V/60Hz
Maximum Gate Weight 300KG 300KG
Motor Power 24VDC,100W
Output Torque 8N.m
Output Shaft Height 46 mm
Limit Switch Magnetic limit switch or spring limit switch Electronic limit switch
Gate Moving Speed 13m/min
Remote Control Range ≥30 m
Recording of Up Remotes 25
Frequency 433.92MHz
Work Duty S2 30min
Noise ≤60dB
Working Temperature -20℃~50℃
Backup Battery ------ 24V 4.5Ah
Driving Mode Gear Chain
Package Weight 8.50KG 19.00KG
