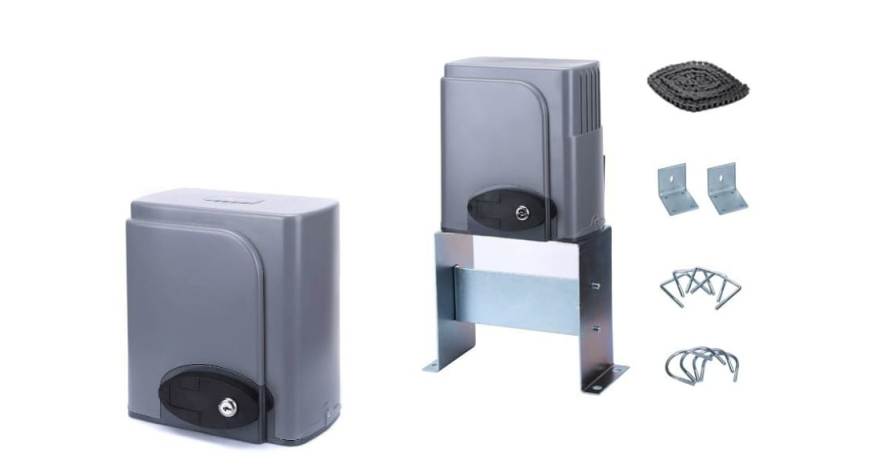

Sliding Gate Motor 600 Kg.

S.No. Features
1 Keypad / single button interface.
2 Electromechanical AC motor with built-in control unit.
3 Alarm lamp, photo beam & safety beam interface.
4 User can select auto-close function.
5 Soft start and slow stop. (Smart version)
6 Auto-reverse function when hitting obstacle during closing. (Smart version)
7 Manual key release design for emergency purposes.
Descriptions Specifications
600 AC 600 ACL
Power Supply AC220V/50Hz; AC110V/60Hz
Maximum Gate Weight 600KG
Motor Power 280W
Output Torque 16N.m
Output Shaft Height 46mm
Limit Switch Magnetic limit switch or Spring limit switch
Gate Moving Speed 13m/min
Remote Control Range ≥30 m
Recording of Up Remotes 25
Frequency 433.92MHz
Work Duty S2 15min
Noise ≤58dB
Working Temperature -20℃~50℃
Driving Mode Gear Chainn
Package Weight 10.00KG 16.00KG
