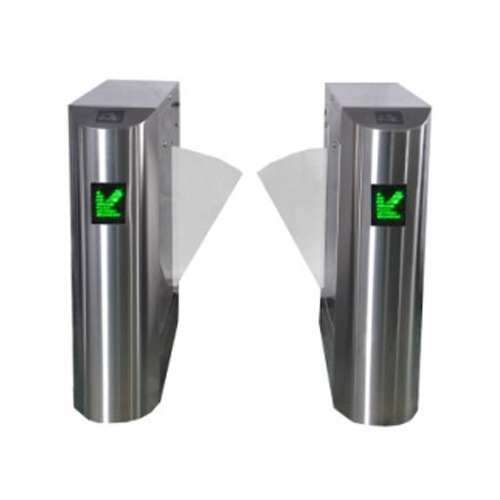

Flap Barrier

Features
Type Indoor use
Passage clearance Minimum 520 mm normal lane and 900 mm for wide/ handicapped entry
Opening/Closing Time 0.5 sec for 520 mm passage and 1.0 sec for 900 mm passage
Descriptions Specifications
Passage clearance Minimum 520 mm normal lane and 900 mm for wide/ handicapped entry
Opening/Closing Time 0.5 sec for 520 mm passage and 1.0 sec for 900 mm passage
PowerConsumption Should be less than 85 Watts per lane
Dimension Normal lane - L 1100 x W 250 x H 1000mm
Wide Lane - L 1100 x W 450 x H 1000mm
Power Supply 230V AC, 50Hz
Housing 304 grade Stainless Steel
Drive Torque controlled Brushless DC Servo motor
Intelligence Controller should be Microprocessor based
Dimensions Length: Up to 6.5m
Width : 90 cm
Height: 60 cm
Integration Should function seamlessly after integration with any access control system
Safety The optical beam installed in the housings close to the retractable panels will inhibit the closing of the panel while the person is in the area of these panels, thereby ensuring pedestrian safety
Logic Control Should have Logic control for flap (Panel) operation depending upon lane configuration
Lane indicator Display passage is barred or free
Safety Measures Photo Electric Beams for safety + Loop Detectors
Spike to Spike Distance 85mm
Housing Galvanised Mild Steel Body
Installation depth 600mm
Vehicle Load 50 ton
Safety Devices Remote Control, Smart Card Reader, Optional Beam Sensor, Loop Detectors, Biometric Devices etc (Optional)
Materials ST 52 Steel
Finish Treatment Customized Paint (Customer Request) Anti - Corrosion Treatment
Controls Controls are installed in a Lockable panel (IP65) to be located at any required distance from barrier.
Safety Mechanism In an event of a tear in a hydraulic pipe, the piston automatically locks the safety lock and the arm serves as a security block only.
In Case of Power Failure Flaps (Panels) should open automatically / should remain closed
Drive Mechanism The flaps are moved by mechanical arms by a shaft connected to the drive unit. The drive unit is a DC motor. The built-in micro-controller guarantees precise movement and positioning of flaps. Safety IR beam prevents the flap from closing upon an obstruction. On obstruction of flaps, the controlling logic detects the abnormal condition and reverse the flap to the fully open position.
Throughput Approximate 22 -25 persons in a minute (excluding card validation time)
Operation Should be Bi-directional
Normal Mode of Operation Normally closed
Duty Cycle Intensive use
Tailgate Detection Aensor shall be placed to detect passage of two person with single access
Protection Rating All Housing and internal parts should be made of rust & corrosion free metals or alloys of high strength with suitable Epoxy coating as applicable
