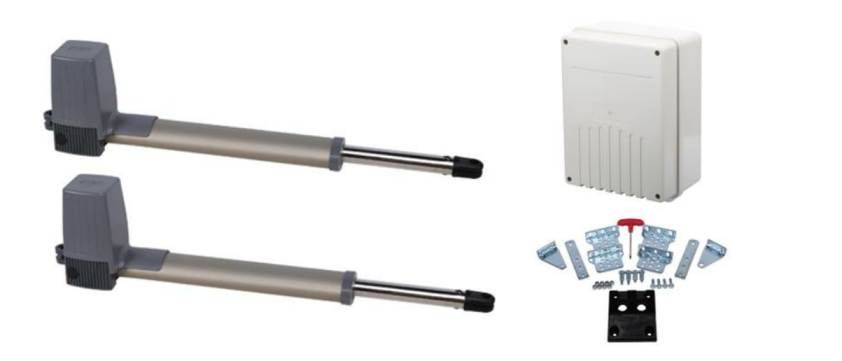

Swing Gate Motor 300 Kg.

S.No. Features
1 DC motor, compact structure, smooth operation and low noise.
2 Optional for stroke length 35 cm and 55 cm.
3 External Control Box
4 Keypad / single button interface.
5 Alarm lamp, Photo beam & safety beam interface.
6 User can select auto-close function.
7 Auto-reverse function when hitting obstacle during closing.
8 Manual key release design for emergency purposes.
Descriptions Specifications
Power Supply AC220V/50Hz;AC110V/60Hz
Maximum Gate Weight 300KG/leaf
Motor Power DC24V,140W
Driving Method Screw driven piston type
Limit Switch Stop Block
Max Speed 1.5cm/sec
Max. Single-Leaf Length 2.5m
Operating Cycle 20 second per 90(approx)
Remote Control Range ≥30 m
Recording of Up Remotes 25
Frequency 433.92MHz
Work Duty S2 30min
Working Temperature -20℃~50℃
Package Weight 19.00KG
